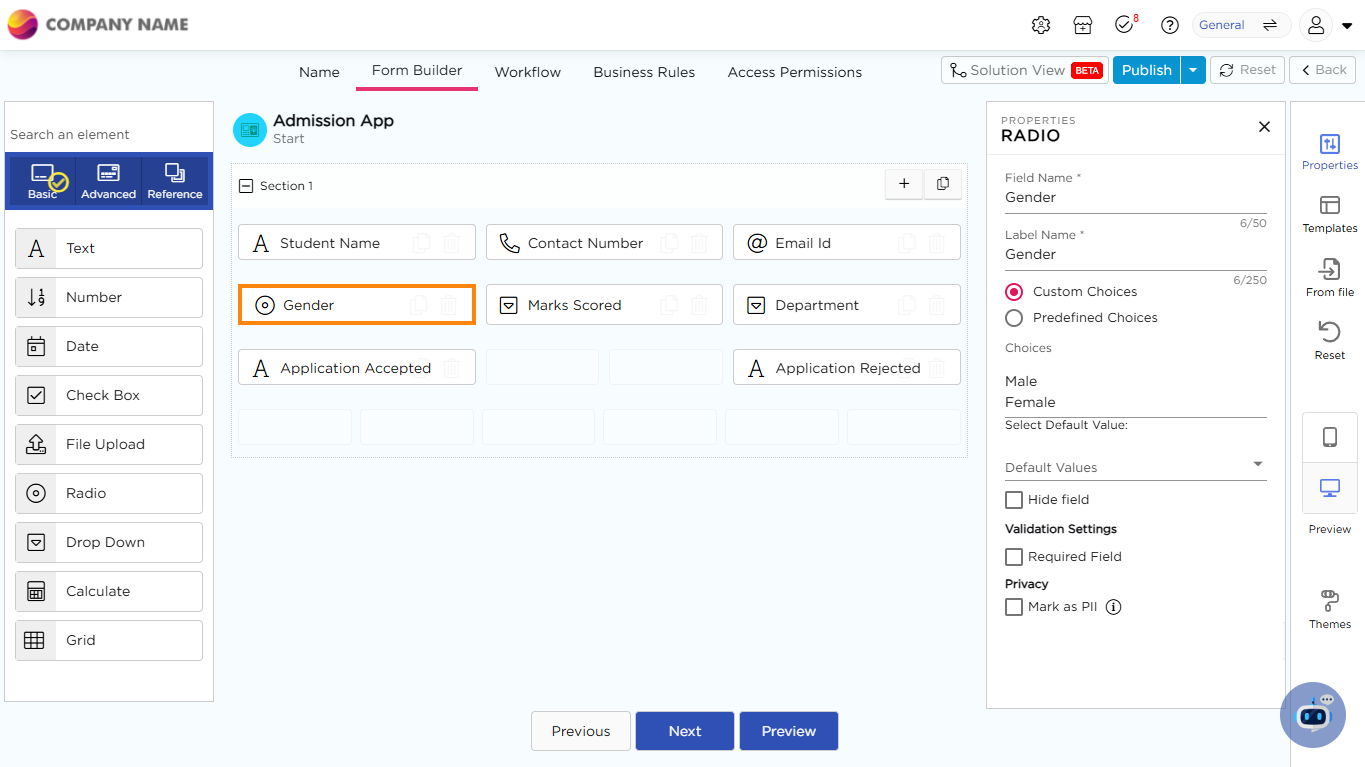

The Radio field stores a single selection from exclusive options. Radio buttons are typically used when users must choose between options where only one selection is allowed.
Example:
- Gender (Male/Female): A user can select one option among Male, Female.
- Marital Status (Married/Unmarried): A user can select either Married or Unmarried as their marital status.

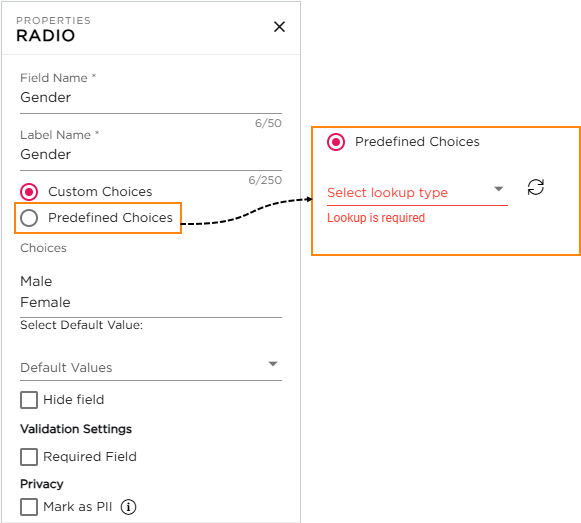

¶ Radio Field - Properties
- Field Name: Provide a unique name for the field which is visible for CDs while building application.
- Label Name: Provide a unique name for the field which will be visible for the end-users.
- Choices: Set values for radio button options between two alternatives.
- Custom Choices: Manually enter values by providing them in the Choices box.
- Predefined Choices: Define values by creating a look-up list.
Important
A Look-up allows you to refer and retrieve information from a list of values. By using this, users can easily access a predefined list of values stored in a data table, rather than manually entering each option.
- Select Lookup Type: Choose a set of pre-defined values from Lookups (To do that, you must create a Look-up). Learn more about Lookups.
- Default Value: Set a default value for the field, which can later be changed by app users.
- Hide Field: Hides the field from being viewed.
Important
The field doesn't appear in the real-time application upon selecting don't show.
¶ Validation Settings
Required Field: Ensures that users provide necessary information in the field, preventing missing or incomplete data.
¶ Privacy
Mark as PII: Flags the field as Personally Identifiable Information to help protect sensitive data. This tag carries over to reports, views, emails, and integrations, where alerts help prevent accidental exposure.
¶ Field Themes

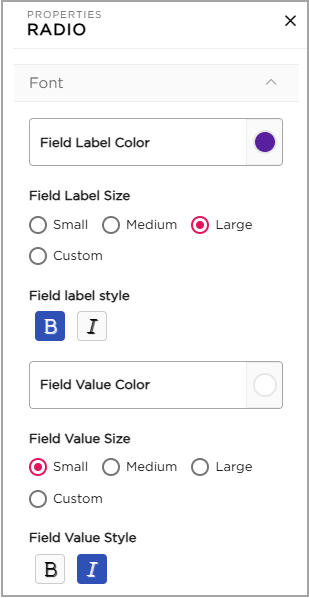

Font Properties-Radio
- Field Label Color: Choose or modify the color of the label name.
- Field Label Size: Select the label size: Small, Medium, Large, or Custom.
- Field Label Style: Apply styles such as Bold or Italic to the label name.
- Field Value Color: Modify the color of the field's value.
- Field Value Size: Select the field size: Small, Medium, Large, or Custom.
- Field Value Style: Apply styles like Bold or Italic to the field value.
